Class 01.10 Steam Locomotive, New Design
They were intended to haul the “ICE” trains of the 1940s. We’re talking about the 55 elegant, super-fast, and powerful streamlined express steam locomotives of the class 01.10. And although little of this pomp and splendor remained after the Second World War, those in charge recognized the potential of this loco type despite its various teething problems. Between 1953 and 1956, the three-cylinder locos were fitted with new high-performance boilers and modern mixer preheaters. This resulted in super-powered steam locos that became a mainstay of premium express services. It was not uncommon for them to cover distances of 25,000 kilometers (15,500 miles) per month right up to the end of their career in 1975. This makes this legendary loco an absolute must for your model railroad fleet.

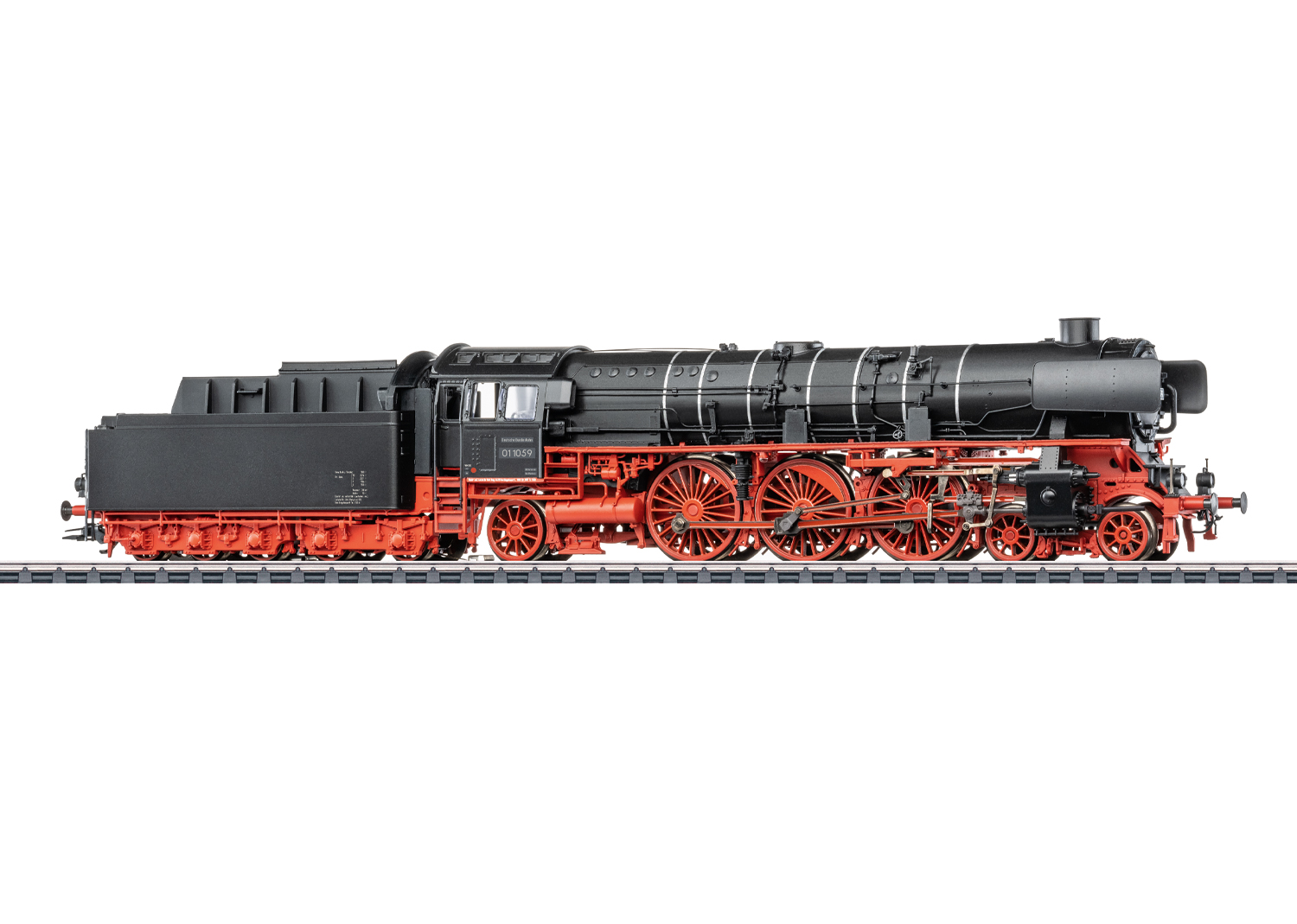

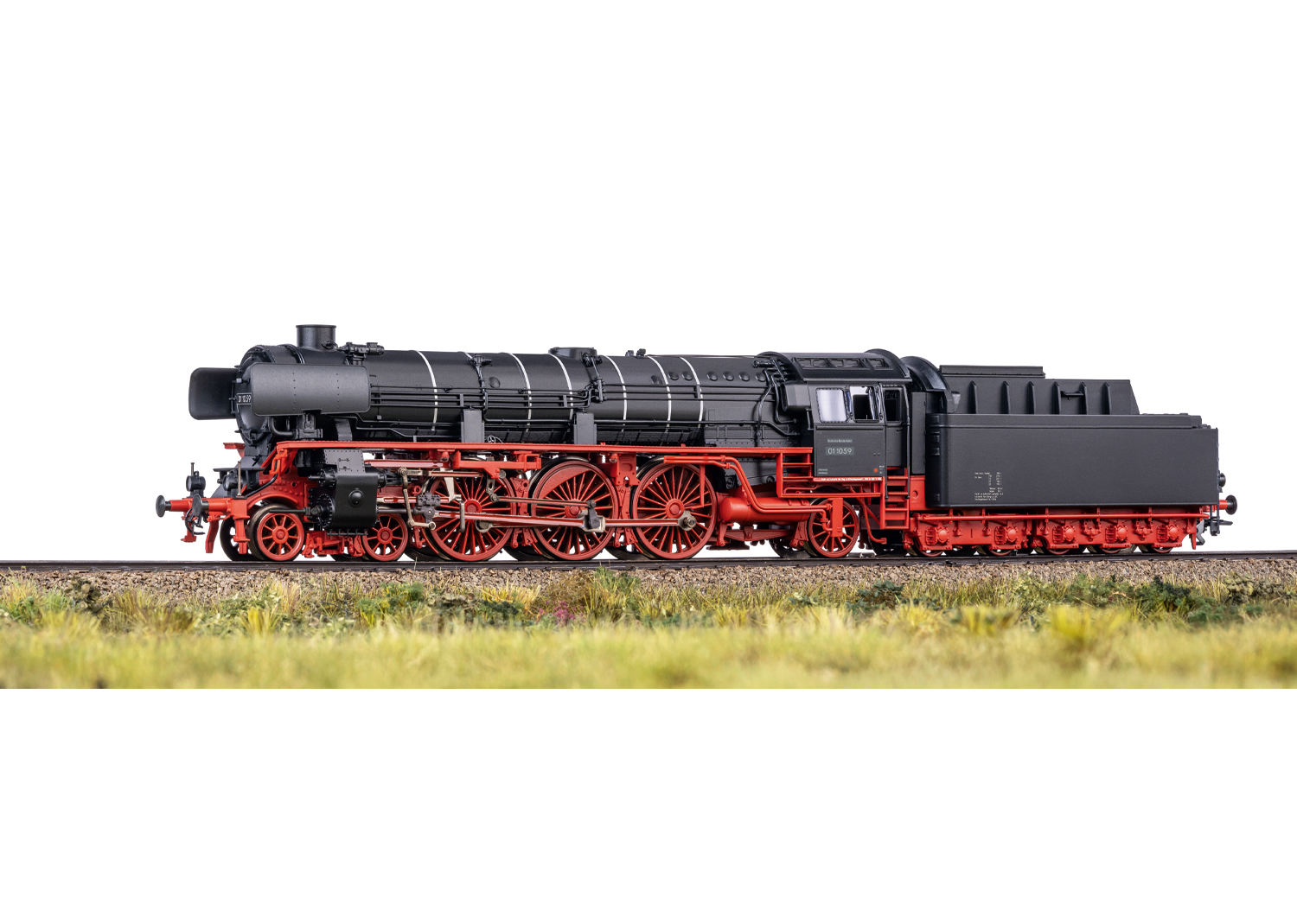

Prototype: German Federal Railroad (DB) class 01.10 express steam locomotive with a new high-performance boiler design and a type 2’3 T38 tender. Black basic paint scheme with red running gear. Version without streamlined fairing. The model features silver boiler bands. Dual headlights. Witte smoke deflectors and an inductive magnet on one side. Loco road number 01 1059. The loco looks as it did after the boiler conversion around 1955/56.
Most Important Facts
| Article No. | 39105 |
|---|---|
| Gauge / Design type | H0 / 1:87 |
| Era | III |
| Kind | Steam Locomotives |
Highlights
- Largely new tooling based on the older design steam loco 01.10.
- Especially intricate metal construction of one of the most renowned German steam locos of the German Federal Railroad.
- Numerous separately applied details.
- It has a factory-installed smoke generator and speed-dependent, dynamic smoke exhaust.
- The cab lights, firebox flickering, and running gear lights can be controlled digitally.
- World of Operation mfx+ decoder with extensive light and sound functions.
- The buffer height conforms to NEM specifications.
- A buffer capacitor is included to bridge short unpowered sections of track.
-
Product description
Model: The loco has an mfx+ digital decoder and extensive sound functions. It also has a controlled high-performance motor with a flywheel, mounted in the boiler. Three axles driven. Traction tires. The locomotive and tender are made mostly of metal. Factory-fitted smoke generator with speed-dependent, dynamic smoke exhaust. Dual headlights change over with the direction of travel, work conventionally, and can be controlled digitally. The cab lights, firebox flickering, and running gear lights can be controlled separately in digital operation. Maintenance-free warm white and red LEDs are used for the lighting. A buffer capacitor is fitted. Close coupling with a guide mechanism between the loco and tender. Tender has a close coupler with a guide mechanism and NEM pocket. The buffer heights on the loco and tender conform to NEM specifications. The minimum radius for operation is 360 mm / 14-3/16". Protective piston sleeves and brake hoses are supplied.
Length over buffers 27.7 cm / 10-7/8".The class 01.10 with a new boiler design is the ideal steam locomotive for the D 74 “Hamburg Altona - Basel SBB” express train on the Frankfurt-Basel section of the route, which can be recreated using the cars from items 42491, 42533, and 42526.
A DC version of this model is available in the Trix H0 range as item 22740.
Find more Märklin explanation videos on our YouTube Channel
Spare parts for our articles can be found here in our spare parts search.
-
Publications
- New items brochure 2026
-
Digital Functions
Control Unit Mobile Station Mobile Station 2 Central Station 1/2 Central Station 3/2*
Mobile Station 2**Headlight(s) Smoke generator Steam locomotive op. sounds Locomotive whistle Engineer’s cab lighting Running gear lights Coal being shoveled and firebox flickering Whistle for switching maneuver Direct control Sound of squealing brakes off Letting off Steam Sound of coal being shoveled Tipping grate Air Pump Conductor's Whistle Water Pump Injectors Replenishing water Replenishing coal Replenishing sand Sanding Sound of Couplers Engaging Rail Joints Safety Valve "Switcher Double ""A"" Light" Switching range + switching light Generator Sounds Special sound function * New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
Warning
ATTENTION: not for children under 15 years
