ICE Express Train Passenger Car Set

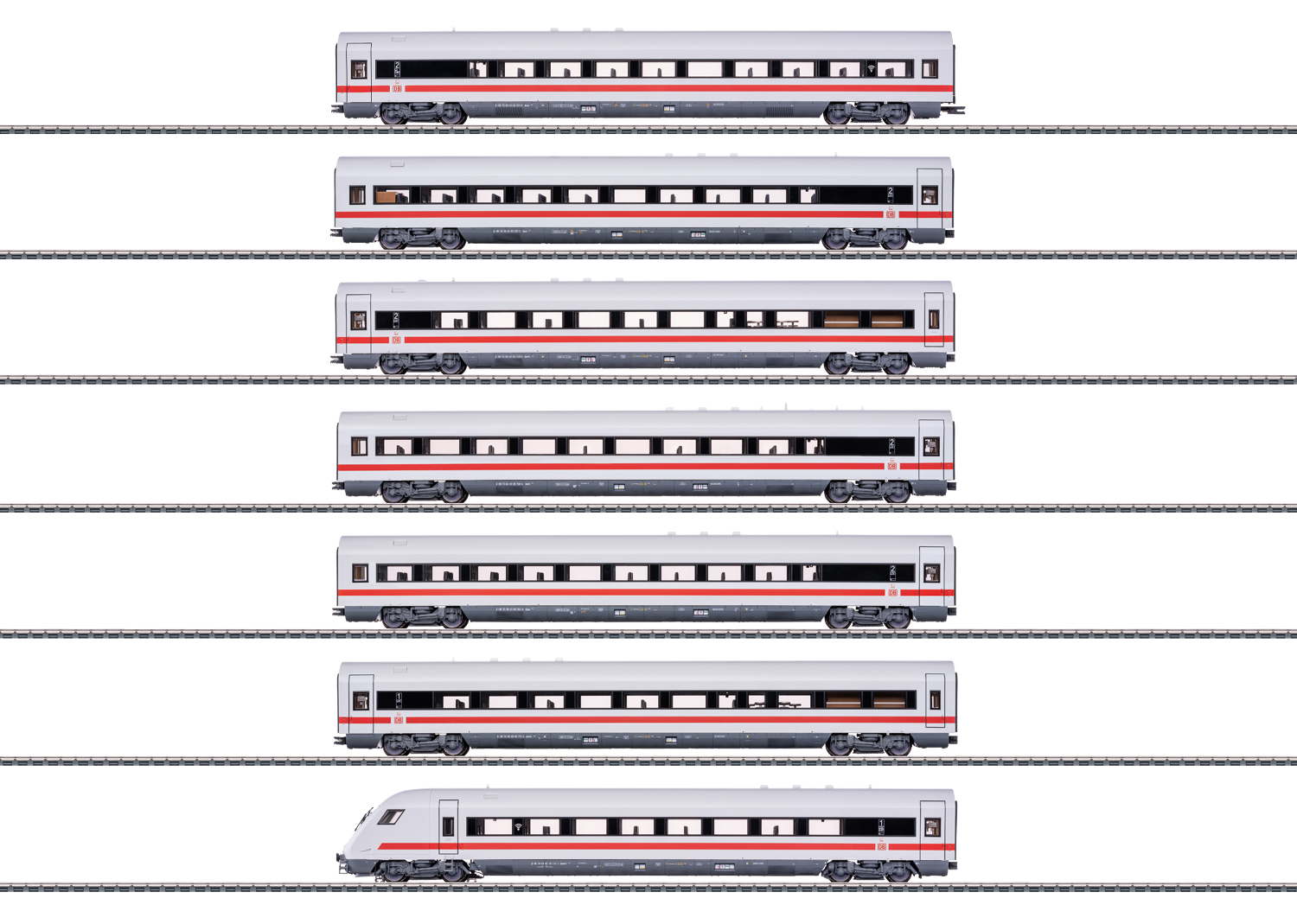

Prototype: German Railroad (DB AG) ICE express train passenger car set comprising 7 former Metropolitan passenger cars of various types in ICE/IC livery. One type Apmz 116.0 express train passenger car, 2nd class, running number 1. 1x type Apmz 116.1 express train passenger car, 2nd class, running number 2. 1x type Apmkz 116.6 express train passenger car, 2nd class, running number 3. One type Apmz 116.4 express train passenger car, 2nd class, running number 4. One type Apmz 116.2 express train passenger car, 2nd class, running number 5. One type Apmkz 116.6 express train passenger car, 1st class, running number 6. One type Apmbzf 116.8, express train control car, 1st class, running number 7. Train route Cologne - Berlin Ostbahnhof, as ICE 1051. The cars look as they did after 2015.
Most Important Facts
| Article No. | 42930 |
|---|---|
| Gauge / Design type | H0 / 1:87 |
| Era | VI |
| Kind | Passenger Car Sets |
Highlights
- True-to-scale reproduction of the express train passenger cars in 1:87.
- All cars include factory-installed LED interior lighting.
- mfx digital decoder in the control car.
- Headlight/marker light changeover, long-distance headlights, cab and control desk lighting in the control car can all be controlled digitally.
- 4-pole separable couplings between the cars, 2-pole separable coupling between loco and car 1.
-
Product description
Model: All cars have factory-installed indirect LED interior lighting, which can be dimmed and controlled digitally using a decoder in the control car. There are buffer capacitors to bridge short spots without current. The control car is fitted with an mfx digital decoder. The triple headlights and dual red marker lights will work in conventional operation and can be controlled digitally. Long-distance headlights, cab lighting, and control desk lighting in the control car can be controlled separately in digital operation. There are 4-pole current-conducting couplers fitted between the express train passenger cars. The express train passenger car with running number 1 is fitted with a 2-pole coupler in an NEM pocket as an electrical connection to the locomotive.
Maintenance-free warm-white and red LEDs are used for the lighting. Car 1 is aligned with the locomotive with a rubber gangway connection. The interior details are modeled in detail in multiple colors. The minimum radius for operation is 360 mm / 14-3/16", ignoring the clearance gauge. For operation on larger radii, the skirt fitted as standard in the area of the couplings at the ends of the cars can be replaced with a separately supplied skirt. A defined car sequence is specified to enable the full functionality of the entire train. Length over the buffers approximately 214 cm / 84-1/4".The matching class 101 electric locomotive is also available in the Märklin H0 range as item 39478. In keeping with the prototype, only the class 101 electric loco, item 39478, can be coupled with the express train passenger car set, item 42930. This item has been developed in a cooperative venture with PIKO Spielwaren GmbH, Sonneberg, Germany.
Find more Märklin explanation videos on our YouTube Channel
Spare parts for our articles can be found here in our spare parts search.
-
Publications
- New items brochure 2026
-
Digital Functions
Control Unit Mobile Station Mobile Station 2 Central Station 1/2 Central Station 3/2*
Mobile Station 2**Headlight(s) Long distance headlights Interior lights Engineer’s cab lighting Control desk lighting * New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
Compatible Products
Warning
ATTENTION: not for children under 15 years
